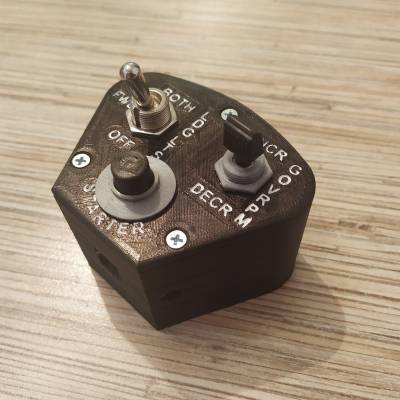

This is a semi-scale Bell 407 style head. This version is modelled after the 407GXP switch panel, as it has more buttons on it than others. From what I've seen, there are a lot of variants of this head with different buttons on it. Proportions should be accurate, with some minimal deviation needed to adapt the head to the existing simchair MKIV collective lever body with a physical latch.

• 1 x KN3(B)-101AP-A1 ON-OFF switch
• 2 x KN3(B)-103A-A3 ON-OFF-ON switch
• 1 x KN3(B)-223 switch
• 1 x PBS-10B2 button
• 1 x PBS-16B button
• 1 x SAC-01 switch cover
• 1 x 12x12x5mm tact button (or similar height)
• 1 x 10mm 5-way hat switch (https://cutt.ly/BxZti0f)
• 9 x M3x50mm round screws and nuts
• 1 x M3x40mm round head screw and nut
• 1 x Arduino Pro Mini
• 1 x TJ8P8C Ethernet socket (12,5x15x17,6mm)

simchair4_models\printable components\peripherals\helicopter\collective lever\c_switch panels\b407 collective head
