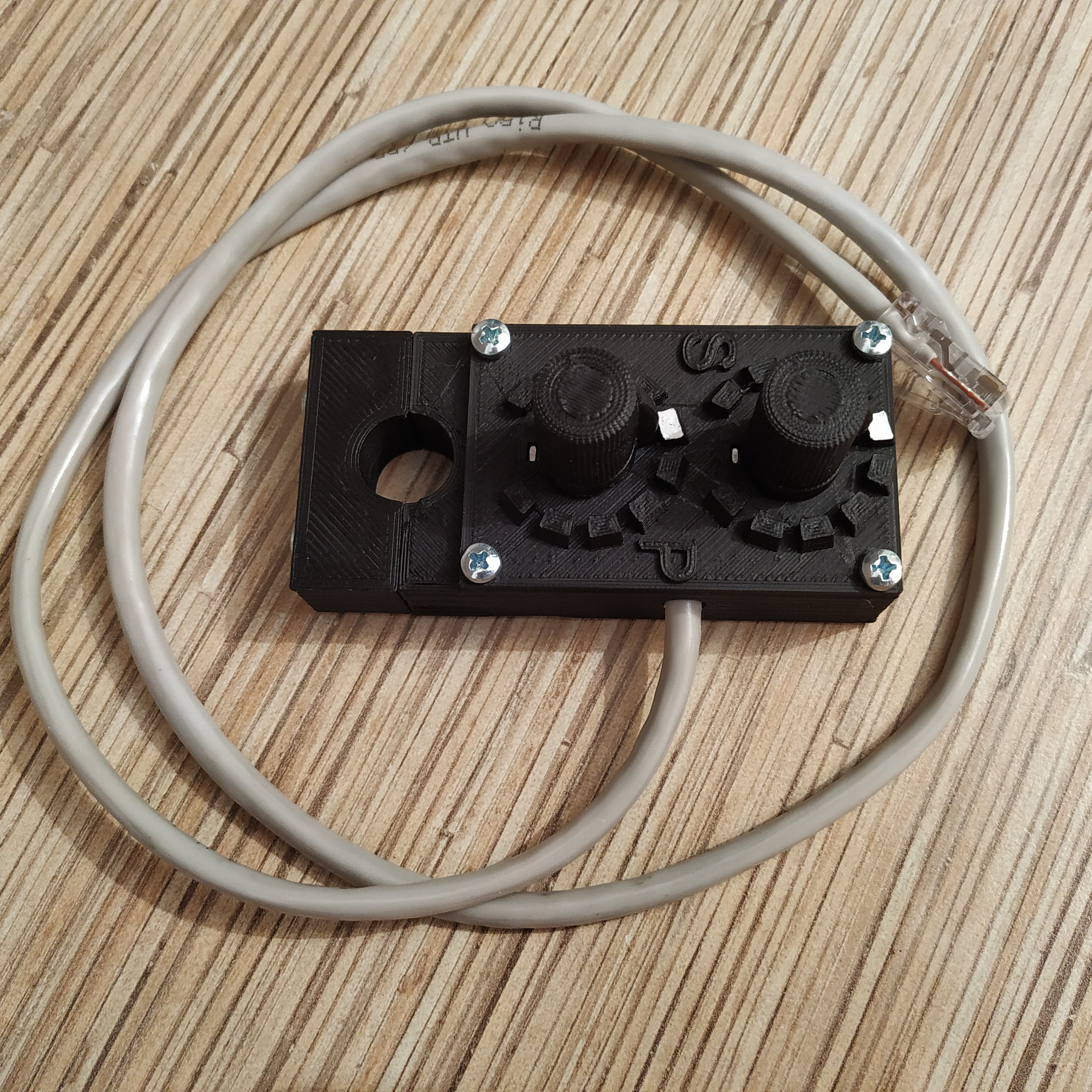

This panel allows you to set the sensitivity (rates) of your cyclic and pedals precisely, in a linear way: Make adjustments with the knobs, until your physical stick/pedals movements will roughly correspond to the on-screen ones, or in the way that you find most comfortable.

The default sensitivity values are set in the software, from bottom-left mark:

MARK   SENS
1      80
2      85
3      90
4      95
5      100 (MARKED WHITE)
6      105
7      110
8      115
9      120
10     125

• 2 x 16K1 linear 10K pots
• 2 x M3 nuts
• 1 x Ethernet cable
• 4 x M3x12 screws
• 2 x M3x40 screws

simchair4_models\printable components\peripherals\helicopter\cyclic lever\d_sens_control_panel - models

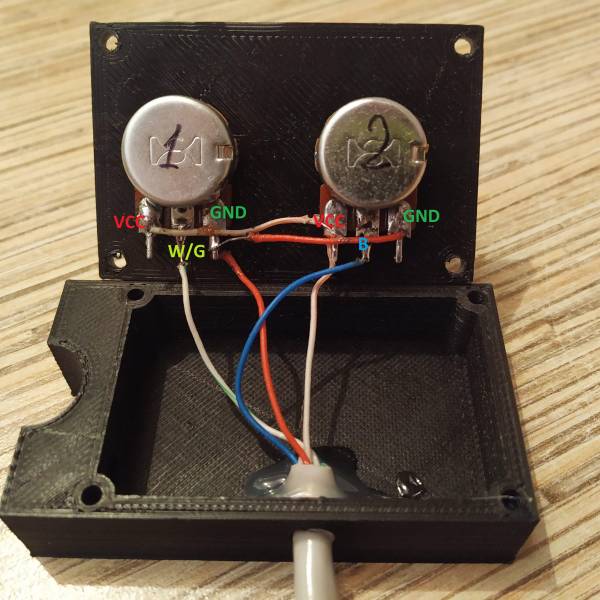

Wire the pots as described below and fix the cable with some hot glue:

ETHERNET WHITE-ORANGE -> POT 1 & 2 VCC
ETHERNET ORANGE       -> POT 1 & 2 GND
ETHERNET WHITE-GREEN  -> POT 1 SIGNAL
ETHERNET BLUE         -> POT 2 SIGNAL

This panel connects to the RATES (FORMER FTCR) port, located on the cyclic base. The port is wired in the following way:

SOCKET PIN 1 -> VCC
SOCKET PIN 2 -> GND
SOCKET PIN 3 -> ADS1115 A2
SOCKET PIN 4 -> ADS1115 A3
